DeltaCube set

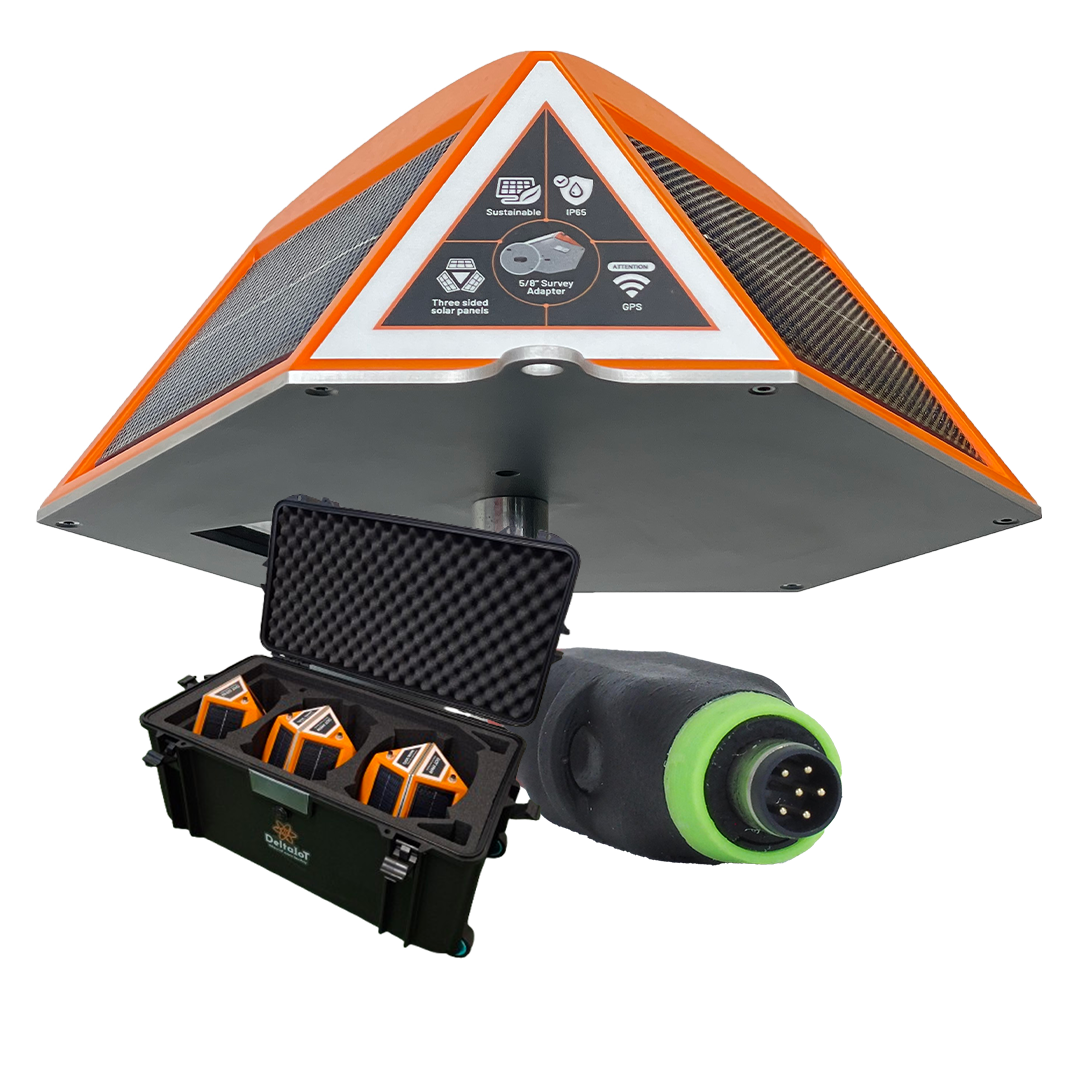

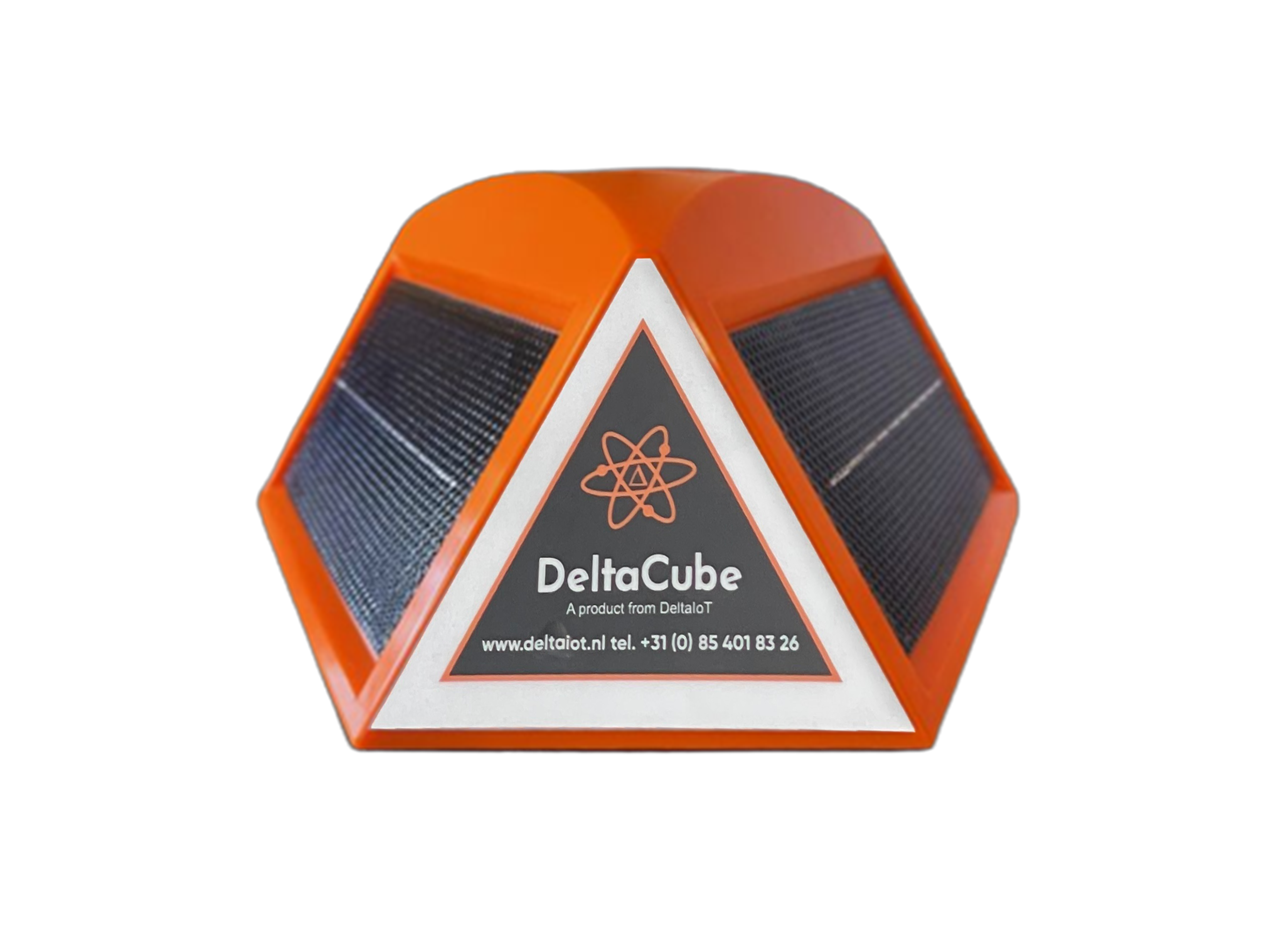

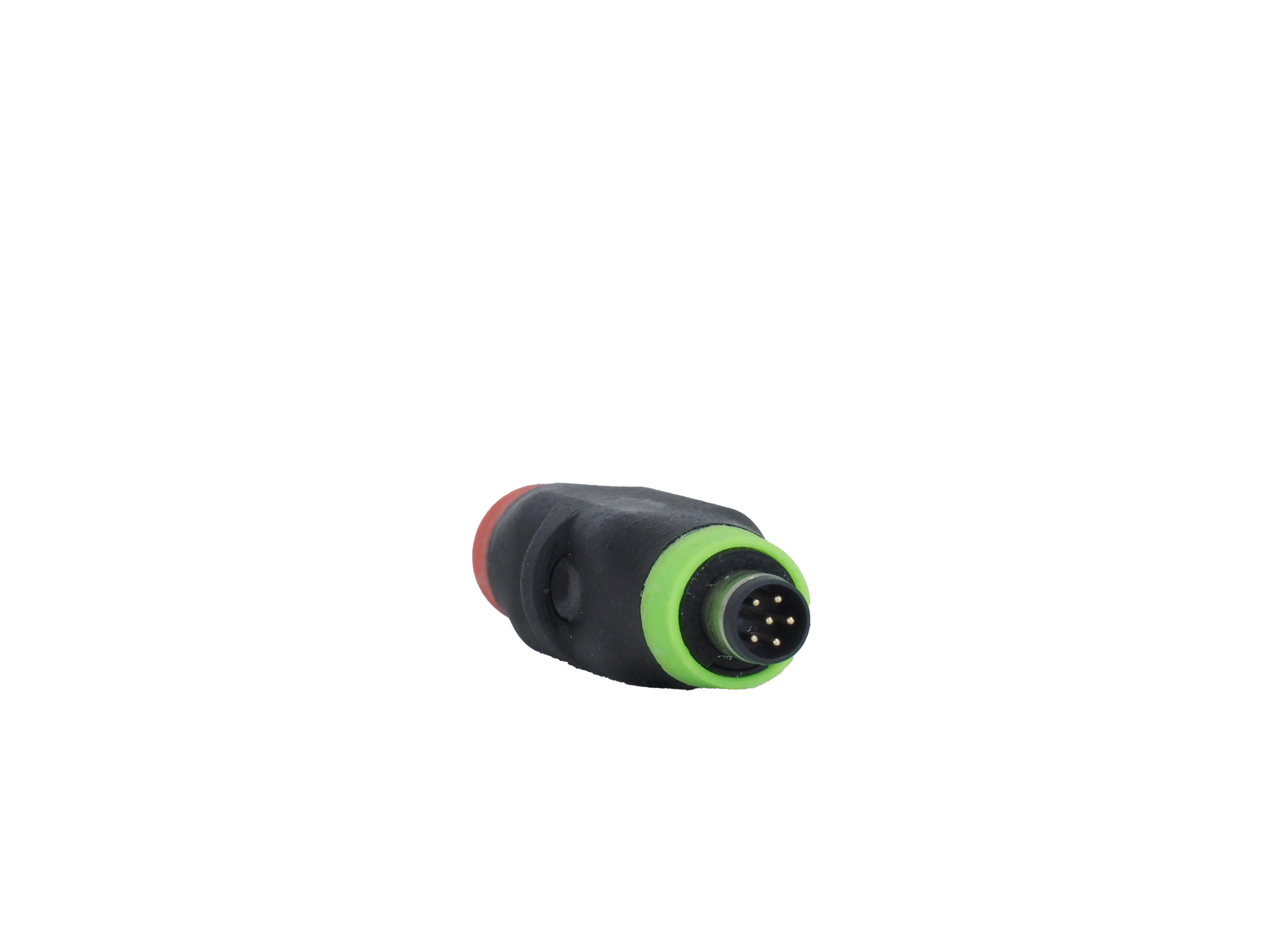

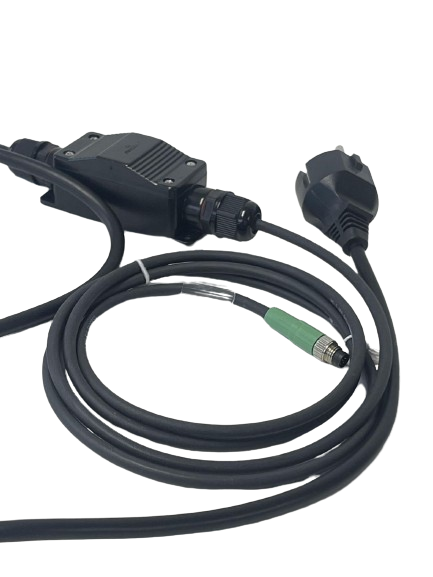

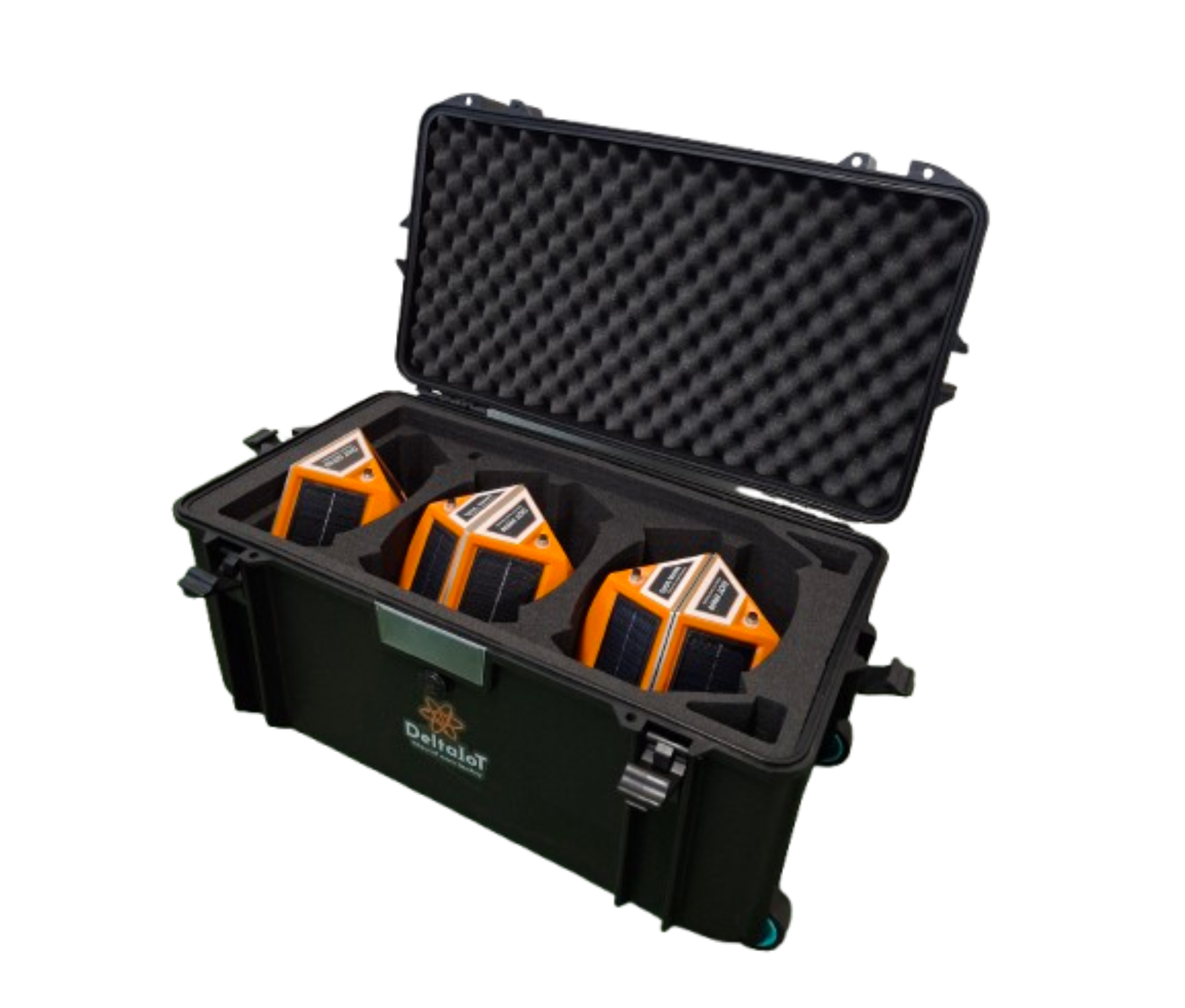

The DeltaCube set consists of a combination of 1 to 5 DeltaCubes, packed in a high-quality IP67 protective transport case, including an activation stick, power cable and the necessary licenses.
Read more
Article number: DeltaCube-set
The DeltaCube set consists of a combination of 1 to 5 DeltaCubes, packed in a high-quality IP67 protective transport case, including an activation stick, power cable and the necessary licenses.
Specifications
Mechanical
| Dimensions | 282 x 246.4 x 102.5 mm |
| Ingress protection | IP65 |
| Operating temperature | -20 to 60ºC |
| Weight | 1.6kg |
Electrical
| Battery | Li-Ion 2600 mAh, 3.63 V |
| Certification | CE |
| Charging Connector | 6-pins, 6.0-9.0 V, 400 mA |
| Charging temperature limit | 0 - 40ºC |
| Solar charging | 3 x 1W |
GNSS receiver
| Number of channels | 184 |
| Signal tracked | GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b |
| Update rates | up to 10 Hz |
Positioning
| PPK-kinematic H | <1 mm 0.5 ppm |
| PPK-kinematic V | <10 mm 1 ppm |
| PPK-static H | <5 mm 0.5 ppm |
| PPK-static V | <7 mm 1 ppm |
| RTK H | <7 mm 1 ppm |
| RTK V | <14 mm 1 ppm |
Distance LIDAR
| Precision | ± 1 cm, up to 2 m, ± 2 cm, 2m to 4 m, ± 5 cm, 4m to 10 m |
| Range | 5 cm to 10 m |
| Resolution | ±1 cm |
Data output
| Custom EPSG formats | - |
| ENU (m) - Local coordinates | - |
| Lat/Lon/Height (deg/m) | - |
| Lat/Lon/Height (degree, minute, seconds) | - |
| RINEX v3.04 | - |
| XYZ-ECEF (m) | - |
Connectivity
| Bands | LTE-TDD B38/B40/B41 LTE-FDD B1/B3/B5/B7/B8/B20 UMTS/HSPA B1/B5/B8 GSM/GPRS/EDGE B3/B8 |
| LTE modem | - |
| Regions | Global |
| SIM card | Micro-SIM |
