Monitor Movement
Skip the repeat surveys
Autonomous monitoring

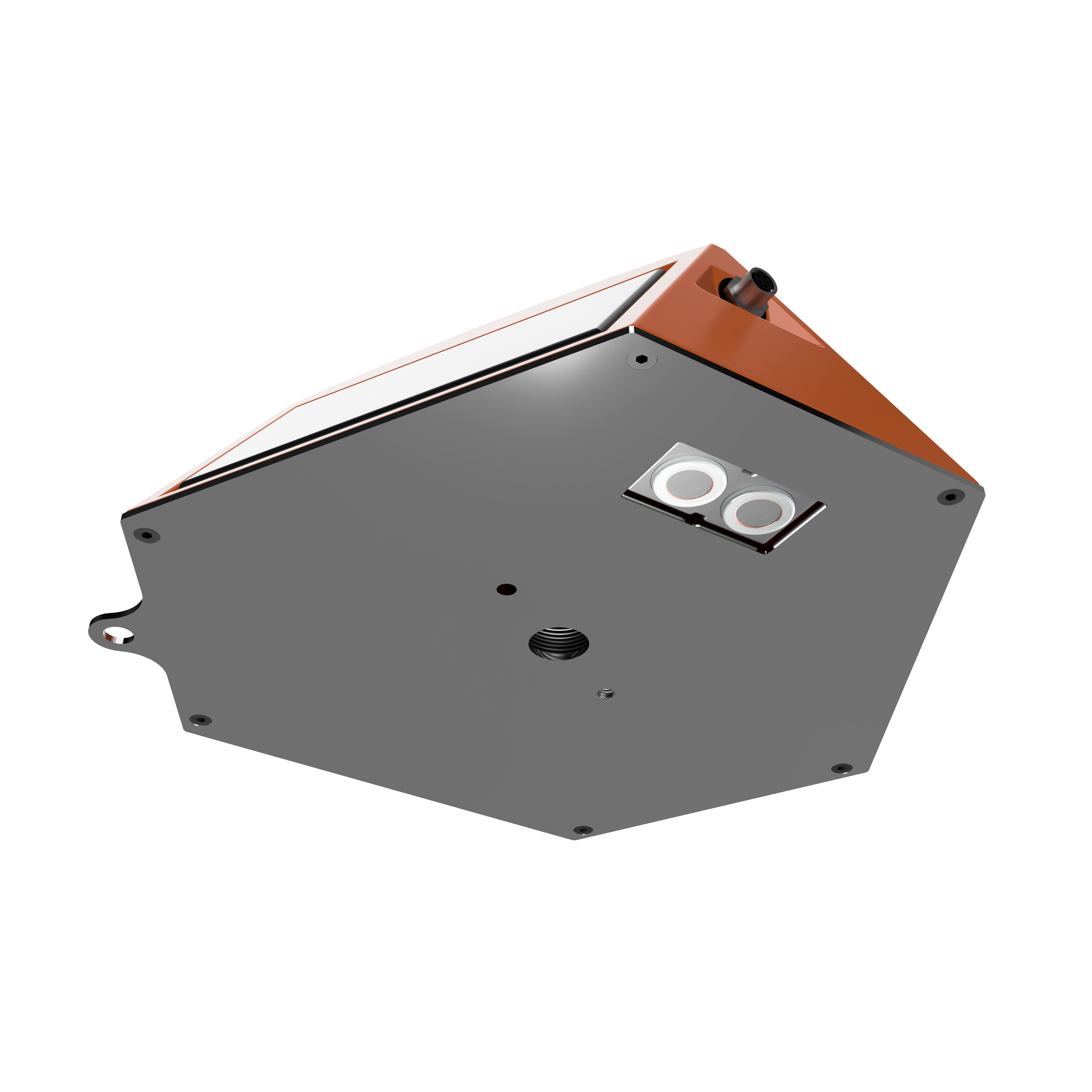

The DeltaCube is an autonomous GNSS monitoring sensor, solar powered and connected via 4G cellular. It provides a cost-effective solution for medium- to long-term monitoring projects requiring millimetre-level accuracy.
Ideal applications include slope stability, landslides, open-pit mines, bridges and other infrastructure, as well as ground settlement and subsidence.
The DeltaCube helps you deliver more data with fewer site visits. A surveyor may visit a monitoring point monthly or even yearly and capture a single observation. The DeltaCube measures throughout the day and consolidates these observations into one precise daily position.
Millimetre-level monitoring. Every day of the year.
Fits existing survey workflows

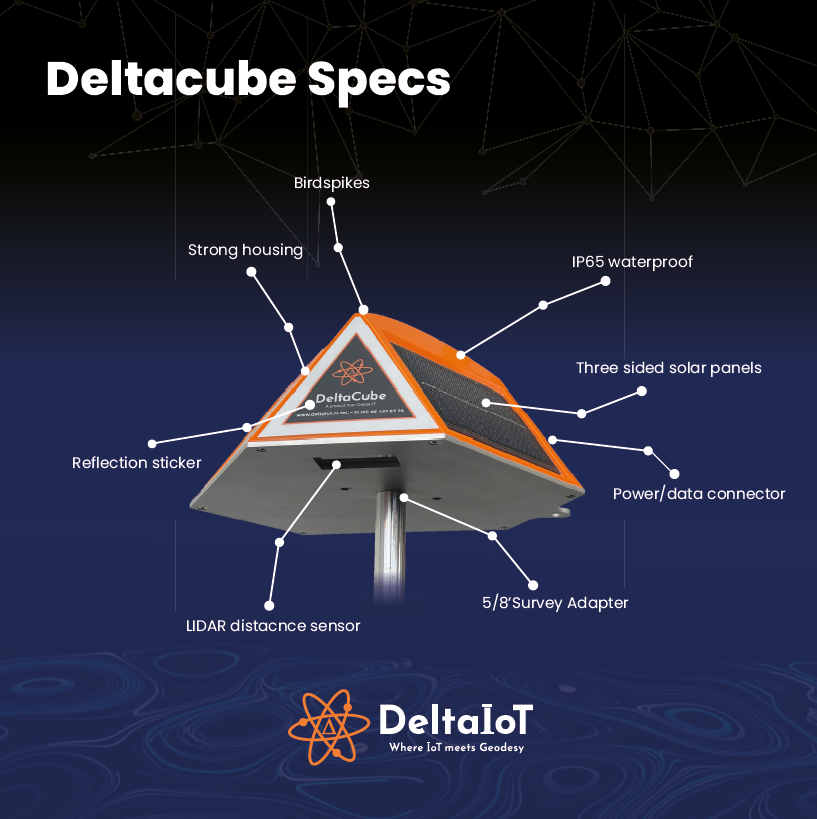

The DeltaCube features a standard 5/8-inch survey thread, making it easy to install on existing monitoring points. When required, it can be temporarily replaced by a prism for independent validation using a total station.
Both position solutions (POS files) and raw GNSS observations (RINEX files) are available via SFTP. An antenna calibration (ATX) file is provided, allowing positions to be referenced accurately to the 5/8-inch mounting point which is equal to the Antenna Reference Point (ARP).
Processed monitoring data is also available through our web interface, API and CSV export.
Cost-effective monitoring
For projects requiring repeated measurements over months or years, DeltaCube provides a cost-effective alternative to recurring survey visits or robotic total station installations.
